Die for Open Barrel Terminal (0.5-6.0mm²) / Item No. : J12JCM

  • J12JCM Jaw for Open Barrel Terminal
  • Quick Change Crimping Jaw J12
  • licrim J12JCM
  • Open Barrel Terminal crimper J12
  • J12JCM

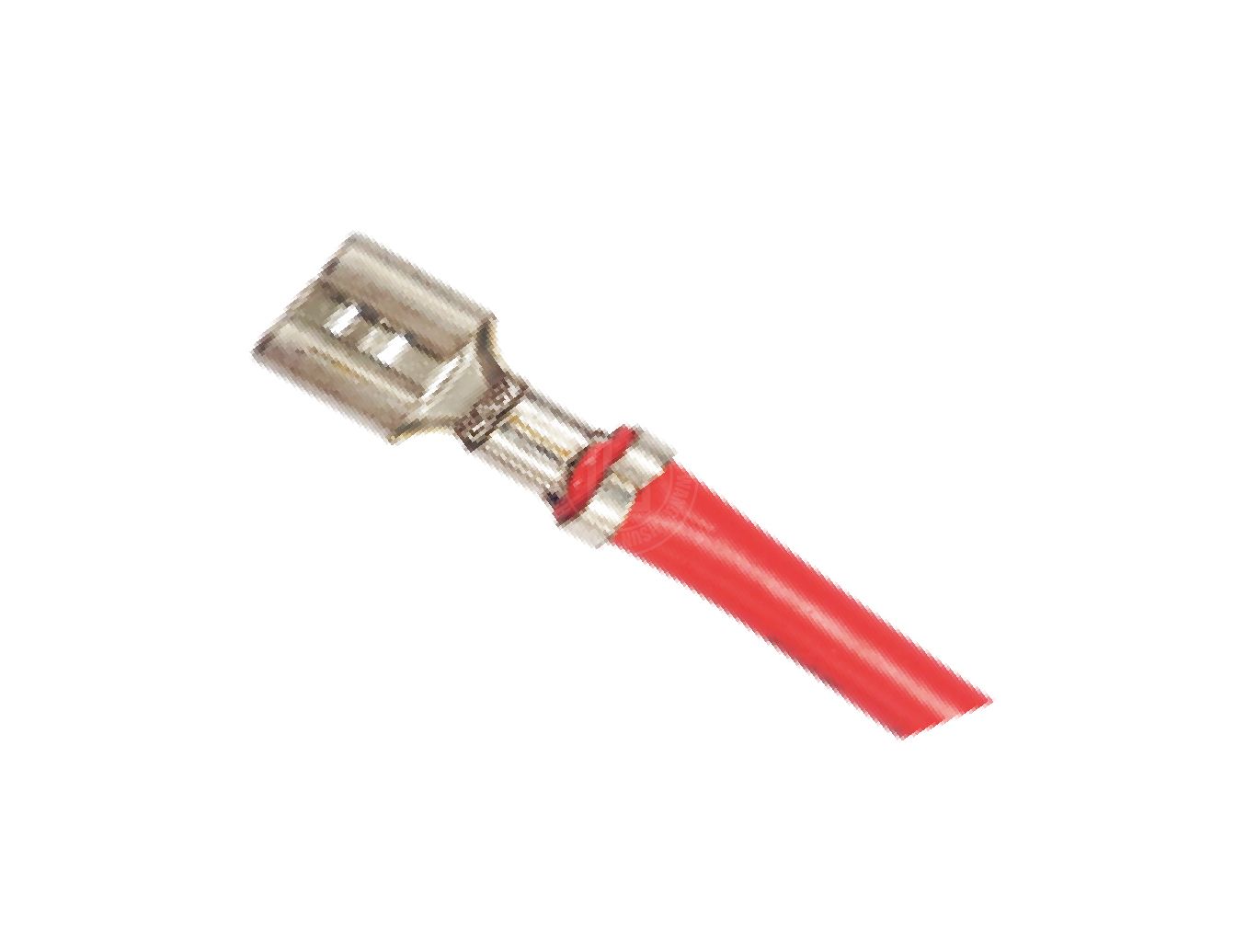

For Open Barrel Contacts

Die for Open Barrel Terminal (0.5-6.0mm²) / Item No. : J12JCM

Quick Change Crimping Jaw for Open Barrel Terminal -AWG 20-18/16-14/12-10 (As UL486 standard.)
Item No. : J12JCM

Product Introduction

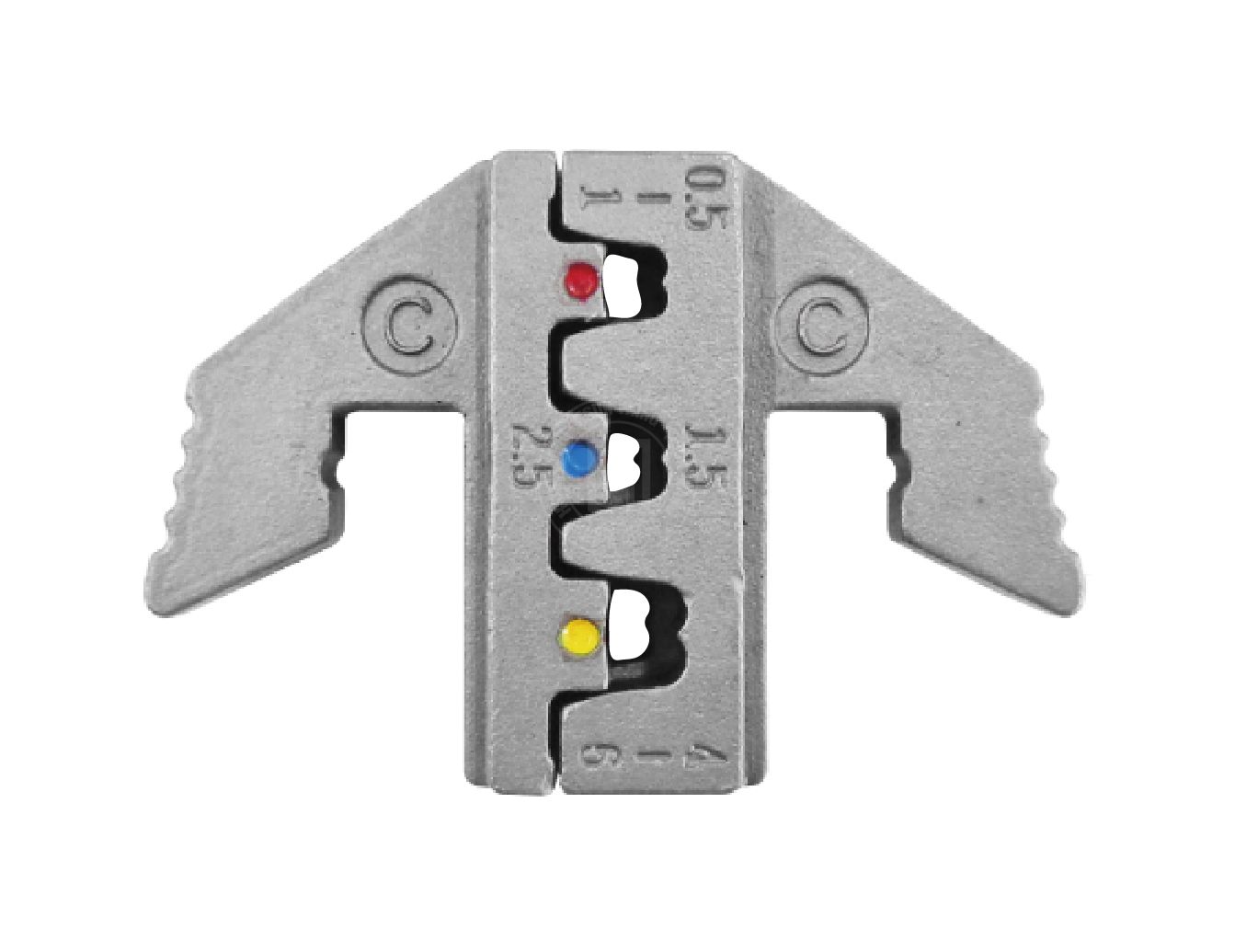

 Item No. : J12JCM Quick Change Crimping Jaw for Open Barrel Terminal

Suitable for

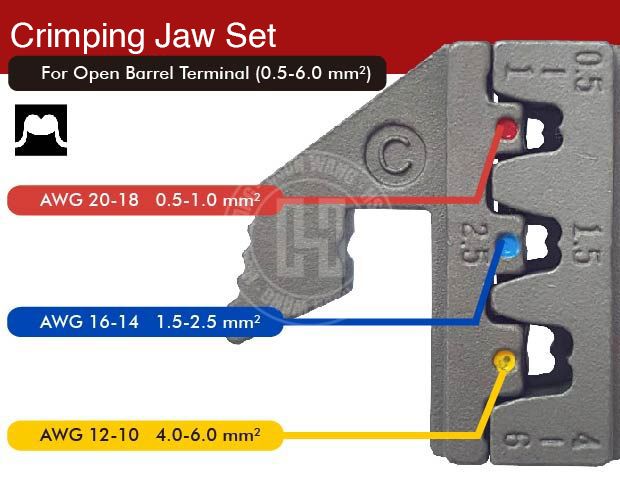

● AWG 20-18/16-14/12-10

●DIN 0.5-1.0/1.5-2.5/4-6 mm2

Confined crimp for B Crimp(F Crimp)This jaw is marked with red/blue/yellow for easy identification as UL486 standard.

Applicable: Auto Repair /Machine Wiring /Electrical & ElectronicDevice

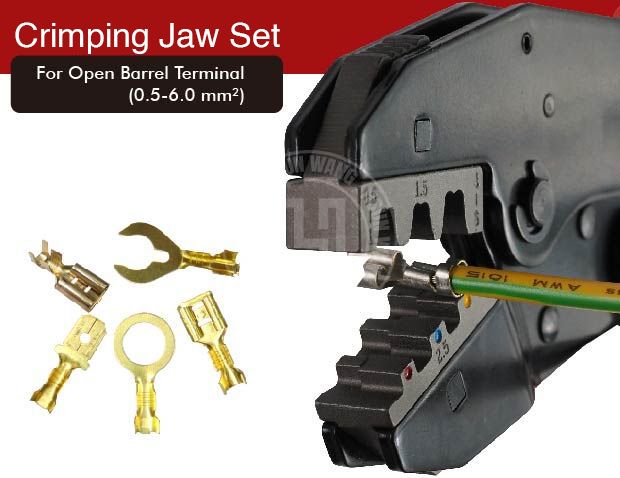

DESIGNED FOR OPEN BARREL TERMINALS - Works with OEM, Molex, Delphi, Deutsch, AMP/Tyco, Weather pack, and Metri-Pack connectors
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/16.7/17.7/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  69.6g
