8.7" Single Tool

8.7" Ratchet Crimper (For Non-Insulated Terminal) / Item No:Q01IB

Ratcheting mechanism with adjustable clamping force allows for precise, repeatable crimps ,Compound action design puts more crimping power into each squeeze,The high quality crimping jaw creates a secure crimp that resists pull-out.

Product Introduction

Item No:Q01IB     8.7" Ratchet Crimper (For Non-Insulated Terminal)

Ratcheting mechanism with adjustable clamping force allows for precise and repeatable crimping.

The compound action design provides greater crimping force for each extrusion process.

Dual crimp jaw to create a secure crimp that prevents pullout.

Suitable for Insulated Flag Terminal

Confined crimp for closed barrel terminals: Indent-Crimp

This jaw is marked with red/blue/yellow colors for easy identification.

Ideal for wire harness in limited space.

International color coded, Easy to distinguish the wire gauge without harness mistake.

Unique jaw cavity for 90 degree terminal work use

Applications:  Auto/ Machine Wiring/ Electrical & Electronic Device/ Industrial device/ compressor/ motorcycle wire added

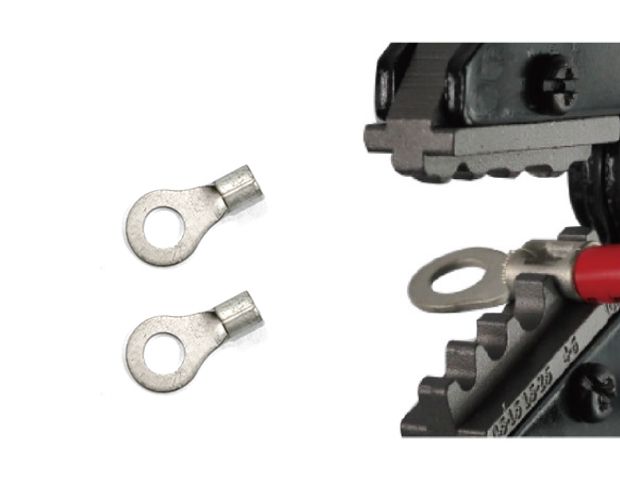

●DESIGNED FOR NON-INSULATED TERMINALS - Makes a single 3D crimp which ensures maximum crimping strength for non-insulated terminals 20-8 gauge and Anderson power pole terminals #6/8/10-12.

●PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
●Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.

●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.

●Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loosen. Adjustable crimp height of star wheel,to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.No tools required.

Jaw:
Material: AISI-4140
Procedure: Precision and Wax-Lost Casting
Treatment: Finished with Heat Treatment
Surface Treatment: Zinc Phosphate



8.7" Ratchet Crimper:
Material:
Body: Carbon Steel
Handle: PP

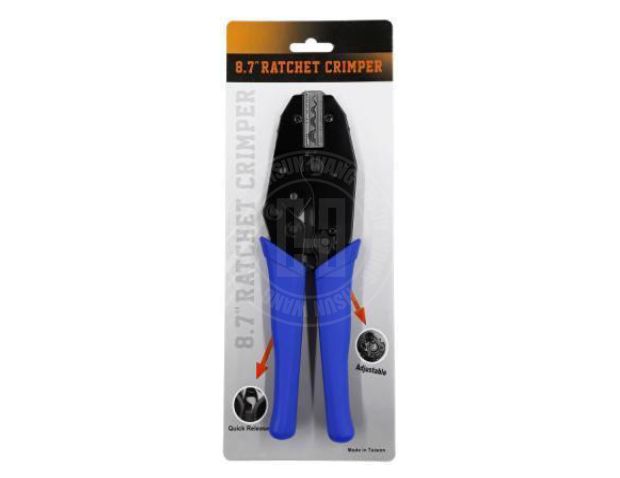

Sliding Card Size:29 x 12 x 2.5 cm

Unit Weight : 529.6g



For more information please contact us.
